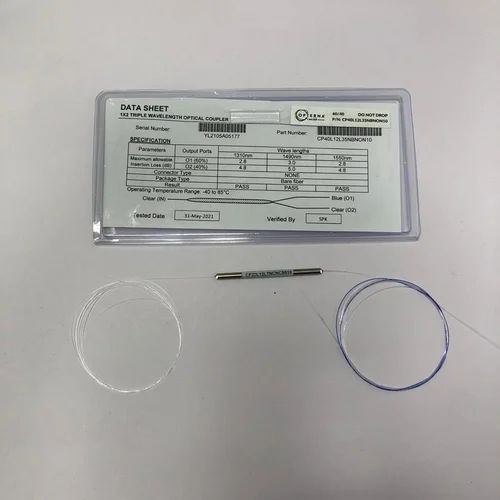

Fiber Optic Ratio Coupler
Prism Infocom LLP
Fiber Optic Ratio Coupler
High-precision FBT Fused Fiber Ratio Couplers designed for splitting optical signals according to specified ratio proportions (50:50, 60:40, 70:30, 80:20, 90:10, 95:5, 99:1). Built with low insertion loss, high stability, and steel tube packaging.
Specifications & Features
| Splitter Type | FBT Fused Biconical Taper Ratio Coupler |
|---|---|
| Port Configuration | 1x2 / 2x2 Ports |
| Splitting Ratios | 50:50, 60:40, 70:30, 80:20, 90:10, 95:5, 99:1 |
| Operating Wavelength | 1310nm / 1490nm / 1550nm Dual Window |
| Fiber Cable Type | G.657A / G.652D Single Mode Fiber |
| Connector Options | SC/UPC, SC/APC, Bare Fiber, FC/UPC |
Explore our complete range of Fiber Optic Ratio Coupler variants below
Optrona 60-40 PLC COUPLER
Enquire Now

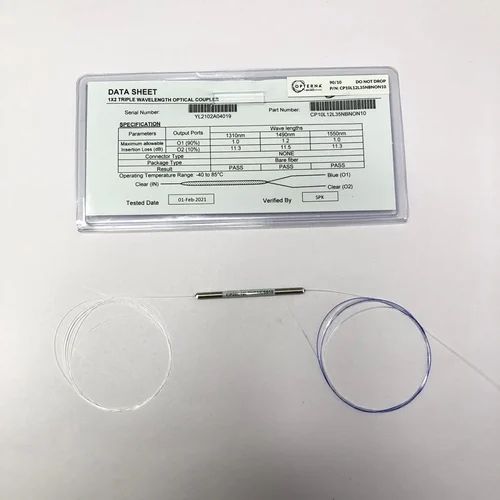

Optrona 90-10 PLC COUPLER
Enquire Now

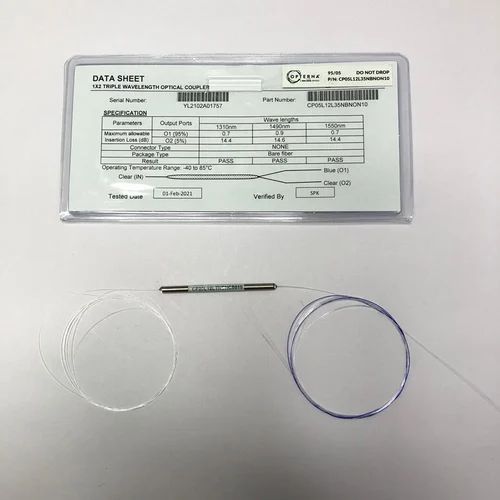

Optrona 95-5 PLC COUPLER
Enquire Now

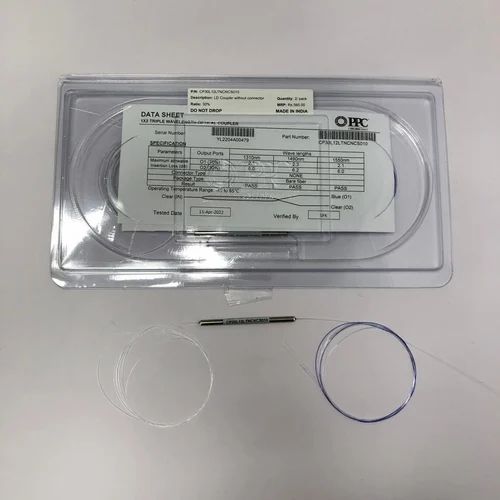

Optrona 70-30 PLC COUPLER
Enquire Now

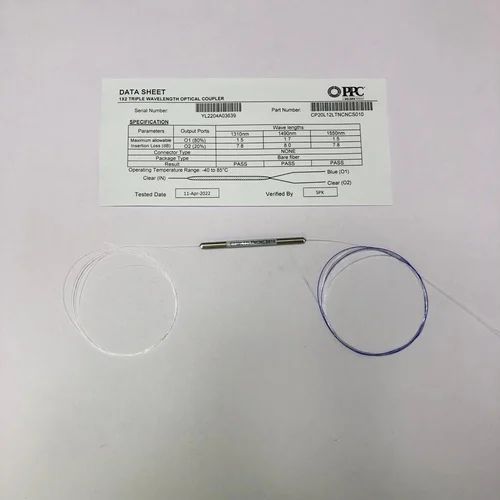

Optrona 80-20 PLC COUPLER
Enquire Now

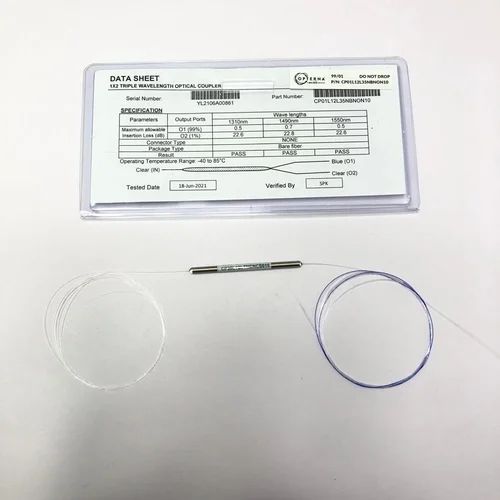

Optrona 99-1 PLC COUPLER
Enquire Now

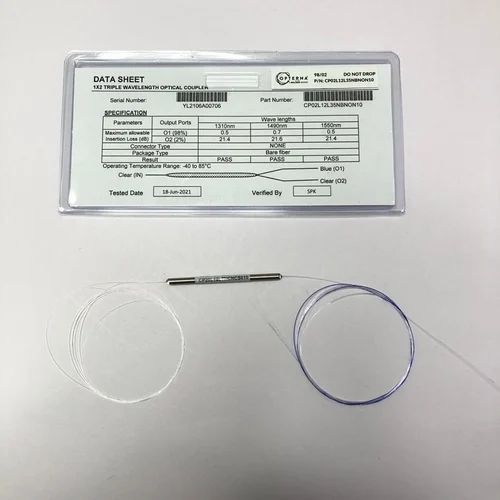

Optrona 98-2 PLC COUPLER
Enquire Now
