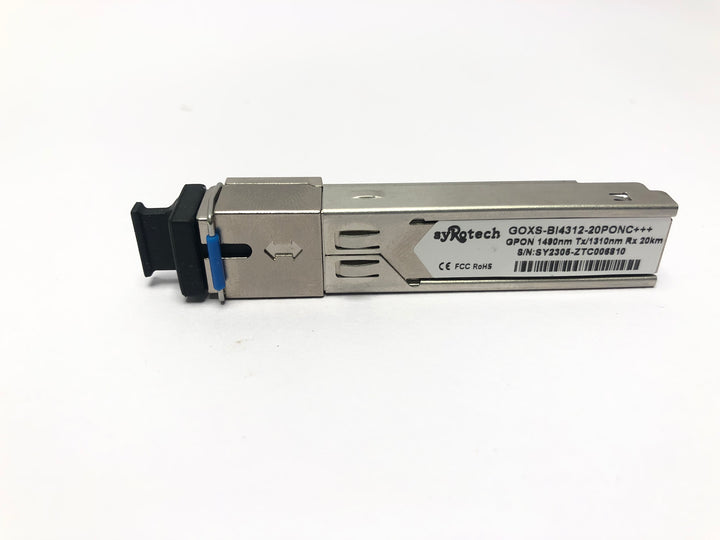

Syrotech 7dbm Gpon SFP GOXS-BI4312-20PONC+++

• Gigabit Ethernet Passive Optical Networks (GEPON) 20Km 1:32 application or 10/20Km 1:64 application Standards
• Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
• Complies with IEEE 802.3ah™-2004
• Complies with FCC 47 CFR Part 15, Class B
• Complies with SFF-8472 Rev 9.5
• Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant toLaser Notice No 50,dated June 24, 2007

• Single fiber bi-directional data links symmetric 1.25Gbps application
• 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
• Reset-less burst-mode receiver simply the system design
• +5~+8dBm high Average Launch Optical Power
• More than 25dB wide dynamic range
• 0 to 70°C operating temperature
• Single 3.3V power supply
• Digital diagnostic monitoring interface
• Digital burst RSSI function to monitor the input optical power level
• LVPECL compatible data input/output interface
• LVTTL transmitter disable control
• LVTTL transmitter laser fault alarm
• LVTTL receiver loss of signal indication
• Low EMI and excellent ESD protection
• Class I laser safety standard IEC-60825 compliant
• RoHS compliance for SOEB4366-PSGE
• SFP with SC/PC Connector Transceiver
• 1490 nm DFB Tx with isolator
• 1310 nm APD Rx
• Digital diagnostics SFF-8472 Compliant
• 2488 Mbps continuous mode Transmission
• 1244 Mbps Burst mode receiver Data Rate
• RX Fast Burst Mode Detection
• Provide fast RSSI function
• Operation case temperature: 0~70°C
• Class C++ link budget
• Comply with ITU-T G984.2 Amendment 1
• Complies with RoHS directive (2002/95/EC)

Power 1.5W
Brand Syrotech
Model Name/Number GOXS-B14312-20PON+++
Voltage 3.3V
Link Length Up to 20km
Class I
Compatible with RoHS
Minimum Order Quantity 5
